Landing door

Car door

Back to Landing door
Forward to Car door

Automatic Sliding Car Door Type TTK 28 (four-panel centre opening)

Required lift directive : according to EN 81-20 / 50

Dimensions:

Clear Door Width (CDW) :

Clear Door Height (CDH) :

Quantity:

QTY

Door panel design:

zinc-magnesium coated sheet metal, to be finish painted on site (Meiller standard)

zinc-magnesium coated sheet metal, secondary prime coated RAL 7030 (to be finish painted on site)

powder-coated according RAL :

RAL colour

Surface matt, coarse (Meiller Standard)

Surface matt, smooth

visible side cladded with stainless steel 1.4301 (AISI 304)

240 grit

Structure

glassed door panels (framed, 'fullglass' or vision panel

all-round framed glass door panel type MGT 01, frames cladded with st. st. 1.4301 (AISI 304) 240 grit (glazing beads aluminium) non fire rated (standard design)

glass door panel 'full glass' with top & bottom fittings VSG-V 20, glass holder aluminum cladded with stainless steel 1.4301 (AISI 304) 240 grit

rebated closing edge protection stainless steel 1.4301 (AISI 304)

all-round framed glass door panel type MGT 99, frames and glazing beads st. st. 1.4301 (AISI 304) 240 grit

zinc-magnesium coated door panel including Vision Panel 100 x 600 mm

visible side cladded with stainless steel 1.4301 (AISI 304)

240 grit

Structure

Door drives, skate arrangements, add. zone locking :

Comfort collector skate type TM 1-V, incl. mechanical car door interlock (zone locking), constant positive fit and force closure between car and landing door, motor AT 40, IP 54, controller IP 20

Motor 200 kg

Motor 400 kg

Comfort collector skate type TM1-V, incl. mechanical car door interlock (zone locking), constant positive fit and force closure between car and landing door, ! NEW ! synchronous belt drive type Meiller MiDrive Twin CAN, IP 54, controller IP 20

Motor 200 kg

Motor 400 kg

Motor 800 kg (VVVF)

Double skate system (please note transom height = 495 mm) type TA7.1 D-V (min. CDW 1200 mm)

incl. CAN Open Bus Module (with MiDrive already included)

Toe guard 750 mm:

zinc-magnesium coated sheet metal in standard width

zinc-magnesium coated sheet metal in complete transom width

stainless steel 1.4301 (AISI 304) 240 grit, in standard width

stainless steel 1.4301 (AISI 304) 240 grit, in complete transom length

Door sills (no additional sill):

Standard aluminum profile sill

Solid aluminum sill with dirt holes

sill model "PURA", aluminium profile sill cladded with stainless steel 1.4301 K240

Sill type Gravida®, rolled profile guide rails with cover sheet, nonvisible guide grooves when door closed

galvanized steel

stainless steel 1.4301 (AISI 304 grade)

Stainless Steel V4A, 1.4571 (316 grade)

Sill type Gravida® MASSIVE, rolled profile guide rails with cover sheet, nonvisible guide grooves when door closed

galvanized steel

stainless steel 1.4301 (AISI 304 grade)

Stainless Steel V4A, 1.4571 (316 grade)

hidden track, stainless steel version 1.4301 (AISI 304) 240 grit

Solid steel segment sill, welded, prime coated

Solid stainless steel segment sill 1.4301 (AISI 304), welded, coarse

Add-on options for special requirements, reduced transom height, protection class, light curtain :

safety edge (Light curtain) LT 40, acc. EN 81-20, reaction time 50 m sec., incl. mounting brackets, without power supply

with power supply

3D safety edge (light curtain) incl. fixing brackets, energy chain and controller unit, (please note: energy chain setup up to 110 mm over top edge of transom)

3D safety edge (light curtain) preparation incl. fixing brackets, energy chain, without light curtain and controller, (please note: energy chain setup up to 110 mm over top edge of transom)

Car door monitoring, splash water-proof, protection class IP54

additional water proof cabinet for controller unit, protection class IP54 (el. galvanised design)

EX rated (Door Drive type Meiller MiDrive, Motor 400 kg, Skate type TM 1 (D) -V)

mechanical retiring cam to unlock swing landing door, mounted on door panel:

Included but not assembled

preassembled (for existing swing landing doors please indicate the exact position of unlocking roller)

delivery without side posts

reduced transom height 350 mm (transom depth 139 mm) minimum COW from 1000 mm

'ECO PLUS' function, in additon to the Motor also the controller device can be set current - free (with MiDrive already included)

Remarks / Comments

'Other' / Remarks:

Delivery memo / delivery address :

Requested delivery date:

Automatic Sliding Landing Door type TTS 28 (four-panel, center-opening)

Required lift directive : according to EN 81-20 / 50

Dimensions:

Clear Door Width (CDW) :

Clear Door Height (CDH) :

Quantity:

QTY

Door panel design:

zinc-magnesium coated sheet metal, to be finish painted on site (Meiller standard)

zinc-magnesium coated sheet metal, secondary prime coated RAL 7030 (to be finish painted on site)

powder-coated according RAL :

RAL colour

Surface matt, coarse (Meiller Standard)

Surface matt, smooth

visible side cladded with stainless steel 1.4301 (AISI 304)

240 grit

Structure

fire rated according EN 81-58:

E 120

EW 30

EW 60

EI 60

glassed door panels (framed, 'fullglass' or vision panel)

all-round framed glass door panel type MGT 01, frames cladded with st. st. 1.4301 (AISI 304) 240 grit (glazing beads aluminium) non fire rated (standard design)

all-round framed glass door panel type MGT 99, frames and glazing beads st. st. 1.4301 (AISI 304) 240 grit (also available fire rated acc. EN 81-58)

fire rating acc. EN 81-58:

E 90

EW 20

non fire rated EI, not in accordance to DIN 18091

glass door panel 'full glass' with top & bottom fittings VSG-V 20, glass holder aluminum cladded with stainless steel 1.4301 (AISI 304) 240 grit

rebated closing edge protection stainless steel 1.4301 (AISI 304)

zinc-magnesium coated door panel including Vision Panel 100 x 600 mm

visible side cladded with stainless steel 1.4301 (AISI 304)

240 grit

Structure

fire rated acc. EN 81-58 :

E 90

Frame design:

zinc-magnesium coated sheet metal, to be finish painted on site (Meiller standard)

zinc-magnesium coated sheet metal, secondary prime coated RAL 7030 (to be finish painted on site)

powder-coated according RAL :

RAL colour

Surface matt, coarse (Meiller Standard)

Surface matt, smooth

made of stainless steel V2A 1.4301 (AISI 304)

240 grit

Structure

Various intallation options, landing call cut out (TTS 28) :

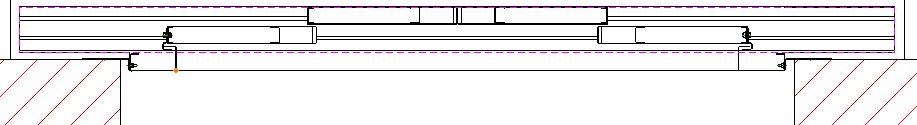

design for niche installation type Evo 'N' protruding frame (standard dimensions frame width left/right/top = 100mm, frame depth = 40mm)

design for shaft installation Typ Evo 'S' (standard dimensions frame width left/right = 200 mm, frame height top = 297mm, frame depth = 23mm, deviating in EI version)

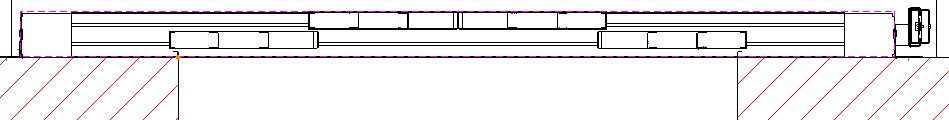

design for simplified modernisation type Evo 'M' (e.g. for installation on existing swing landing door frame) side and top frames angled profile sections (non fire rated acc. EN 81-58)

landing call push button cut out :

in left hand frame (viewed from landing)

in right hand frame (viewed from landing)

(a) Width

(b) Height

(h) Top edge of sill to bottom edge of cutout

Toe guard 300 mm:

zinc-magnesium coated sheet metal in standard width

zinc-magnesium coated sheet metal in complete transom width

stainless steel 1.4301 (AISI 304) 240 grit, in standard width

stainless steel 1.4301 (AISI 304) 240 grit, in complete transom length

Door sills (standard scope of supply incl. additional sill):

Standard aluminum profile sill

Solid aluminum sill with dirt holes

sill model "PURA", aluminium profile sill cladded with stainless steel 1.4301 K240

Sill type Gravida®, rolled profile guide rails with cover sheet, nonvisible guide grooves when door closed

galvanized steel

stainless steel 1.4301 (AISI 304 grade)

Stainless Steel V4A, 1.4571 (316 grade)

Sill type Gravida® MASSIVE, rolled profile guide rails with cover sheet, nonvisible guide grooves when door closed

galvanized steel

stainless steel 1.4301 (AISI 304 grade)

Stainless Steel V4A, 1.4571 (316 grade)

hidden track, stainless steel version 1.4301 (AISI 304) 240 grit

Solid steel segment sill, welded, prime coated

Solid stainless steel segment sill 1.4301 (AISI 304), welded, coarse

continuous lower base (sill support), prime coated steel

without additional sill (standard scope of supply with additional sill)

Add-on options for special requirements, protection class, additional switch for emergency door release (for lifts with reduced pit/overhead) etc.:

landing door monitoring splash water proof, protection class IP X 3 (no transom cover on shaft side possible)

landing door monitoring water proof, protection class IP 67 (please note: transom height = 347 mm)

hook lock with additional pictogram for firefighters lifts according to EN 81-72

EX rated (please note: transom height 347mm)

additional switch for emergency door release monotoring (e.g. for elevators with rduced refuge space) incl. 3.0 m cable

with limit switch

with position switch for electromagnetic remote reset

frame cover sheets on shaft side

zinc-magnesium coated sheet metal, to be finish painted on site (Meiller standard)

made of stainless steel V2A 1.4301 (AISI 304)

240 grit

Structure

transom cover sheet on shaft side (top)

zinc-magnesium coated sheet metal, to be finish painted on site (Meiller standard)

made of stainless steel V2A 1.4301 (AISI 304)

240 grit

Structure

transom cladding on visible side (front, top, side walls) in stainless steel 1.4301 (AISI 304 grade)

240 grit

Structure

reduced transom height 350 mm (transom depth 139 mm) minimum COW from 1000 mm

Landing door with enhanced anti-fall protection for passengers with electro vehicles (mobility scooters) according Meiller Scooter Guard© safety system

please consider the max. possible door sizes

Remarks / Comments

'Other' / Remarks:

Delivery memo / delivery address :

Requested delivery date:
