Door panel guide shoes

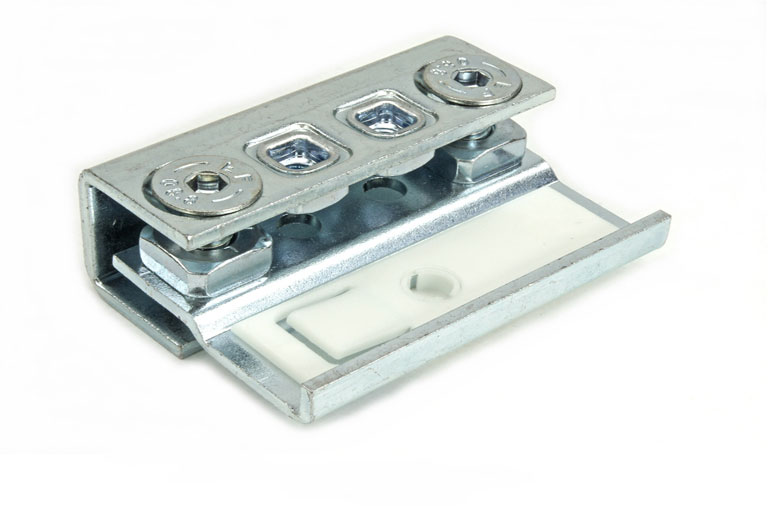

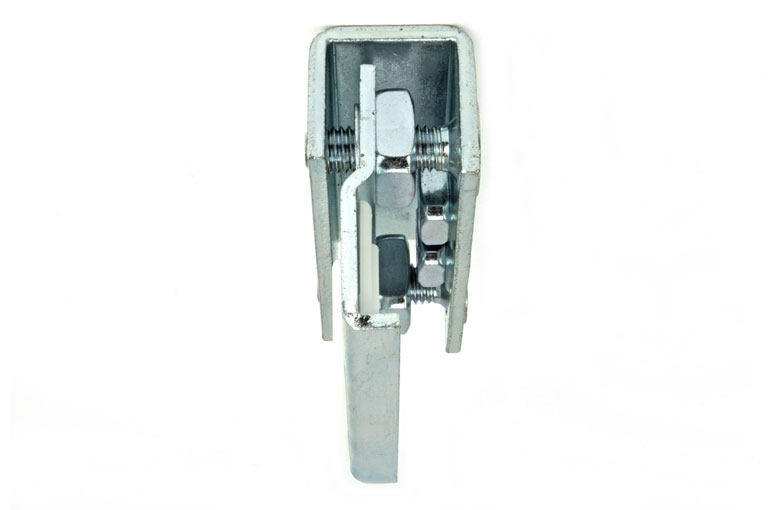

The door panel guide consists of two independent guide elements (each 72 mm long, 2,5 mm / 3 mm thick) with plastic slides.

These can be replaced without removing the door panels.

Every guide element is equipped with two fastening screws and two set screws each in order to be able to appropriately adjust the elements in the running direction.

The guide elements are directly fastened by screws with the door panel in the lower area of the door panel and with the welded U-sheet channel.
