Sills

Selecting the right sill for the respective door or lift installation is crucial for ensuring use of the installation without any disturbances later on.
We have a selection of sills to offer you as the optimum solution for every situation.
The different types of sills are shown below, together with the permissible wheel loads.

Our sill types

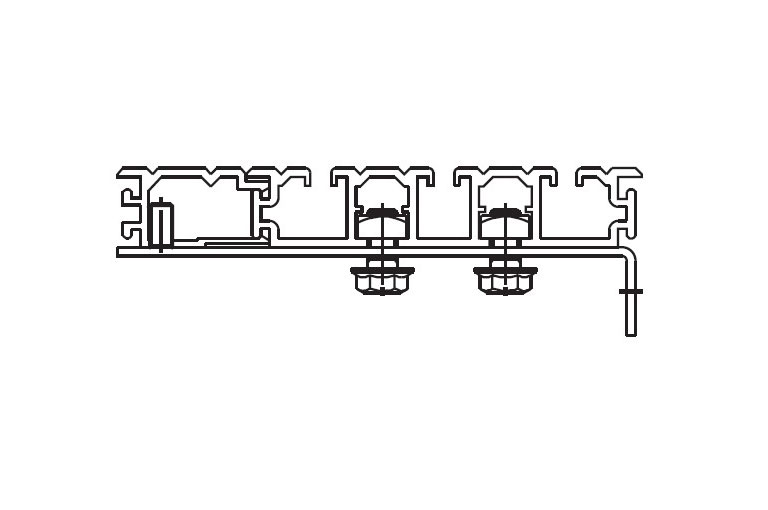

Standard aluminium profile

6kN or 0.6 m. tonnes

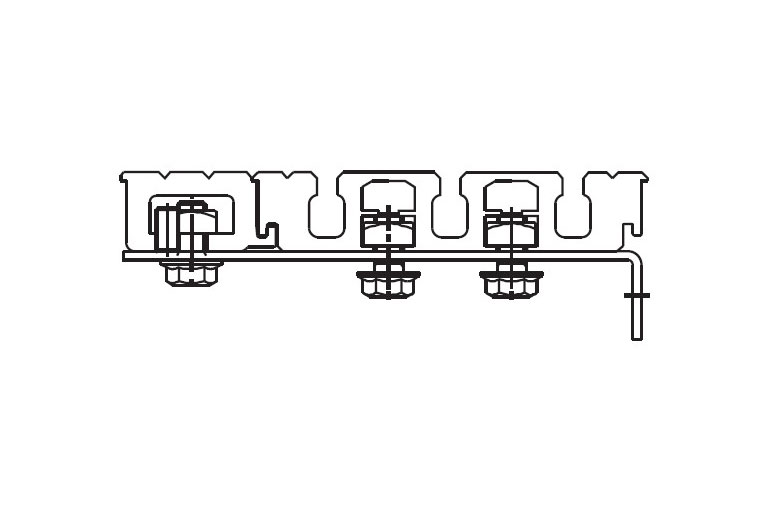

Solid aluminium profile

50kN or 5 m. tonnes

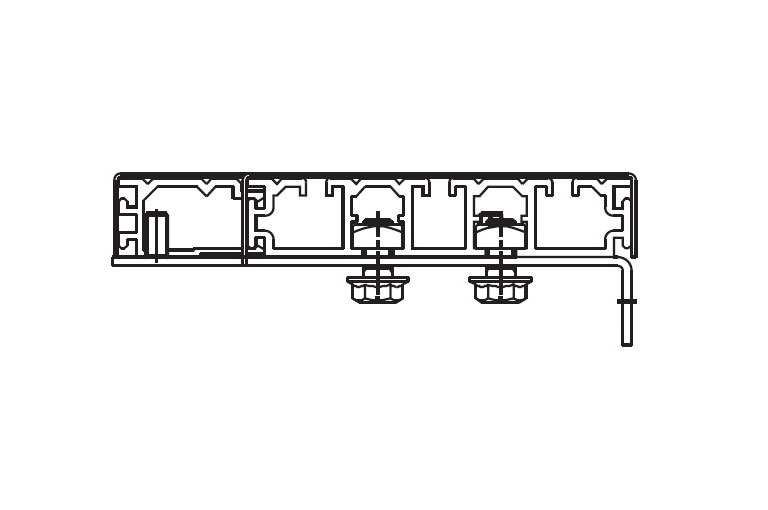

Pura (aluminium profile clad with stainless steel)

1kN or 0.1 m. tonnes





meiller-aufzugtueren-qualitaet-im-detail-schwellen-pura_aluprofil-mit-edelstahl-verkleidet-1kN.jpg

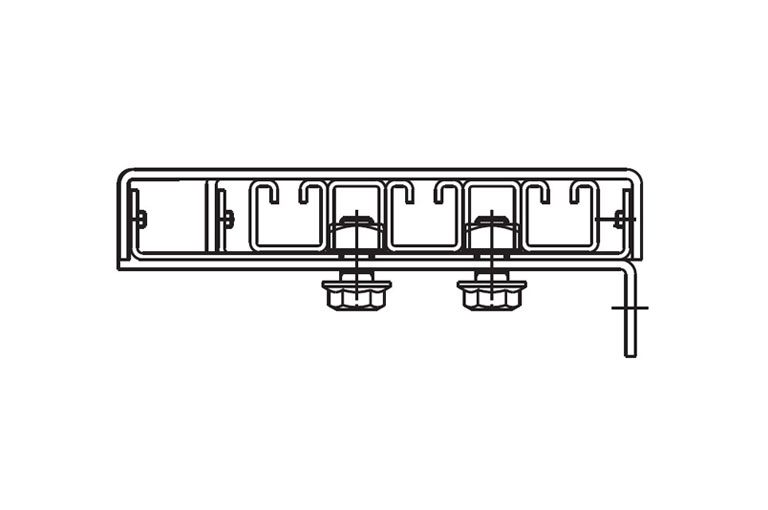

Gravida sill, steel or stainless steel

18kN or 1.8 m. tonnes

meiller-aufzugtueren-qualitaet-im-detail-schwelle-gravida-stahl-oder-edelstahl-18kN.jpg

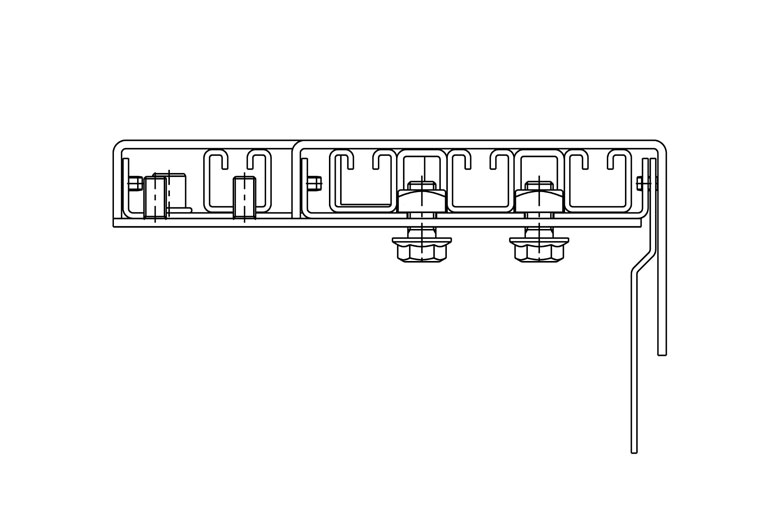

meiller-aufzugtueren-qualitaet-im-detail-verdeckte-untere-fuehrung-oder-gravida-plus-stahl-oder-edelstahl-18kN_01.jpg

Hidden track or Gravida Plus, steel or stainless steel

18kN or 1.8 m. tonnes




meiller-aufzugtueren-qualitaet-im-detail-schwellen-gravida-massiv-stahl-oder-edelstahl-18kN.jpg

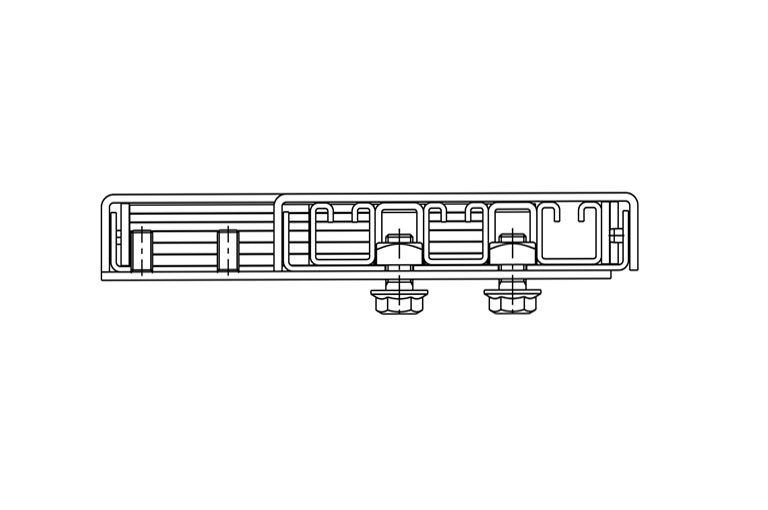

Gravida sill, solid steel or stainless steel

50kN or 5 m. tonnes

meiller-aufzugtueren-qualitaet-im-detail-verdeckte-untere-fuehrung-massiv-oder-gravida-plus-massiv-stahl-oder-edelstahl-50kN.jpg

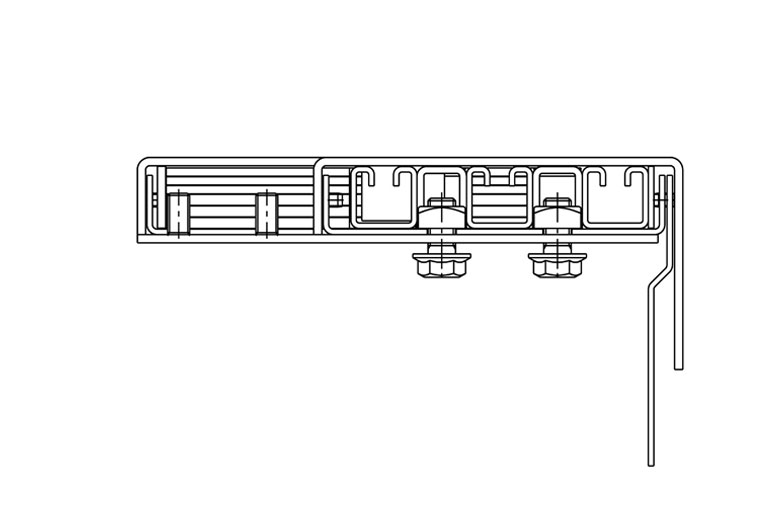

Hidden track, solid, or Gravida Plus, solid steel or stainless steel

50kN or 5 m. tonnes



meiller-aufzugtueren-qualitaet-im-detail-segmentschwelle-massivprofil-stahl-oder-edelstahl-85kN.jpg

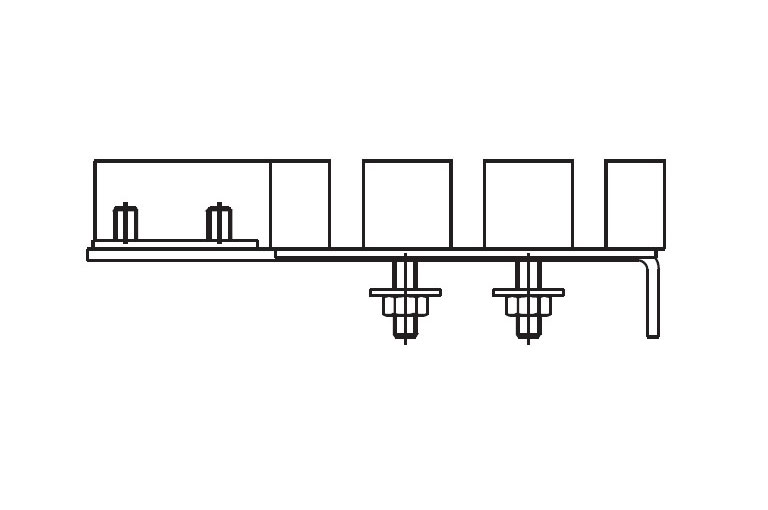

Segment sill, solid profile steel or stainless steel

85kN or 8.5 m. tonnes
