MEILLER SWING DOORS

Swing doors for industrial and heavy-duty lifts with external door hinges

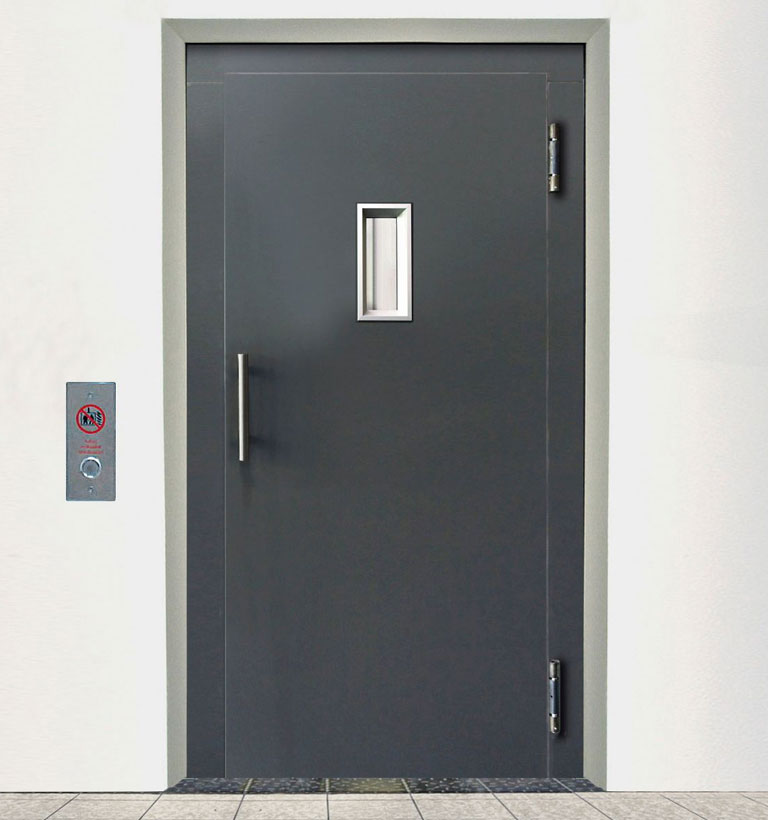

DT 39/1

The door is available as a single-panel version DT 39/1 for use in public areas or on vandal-proof lifts.

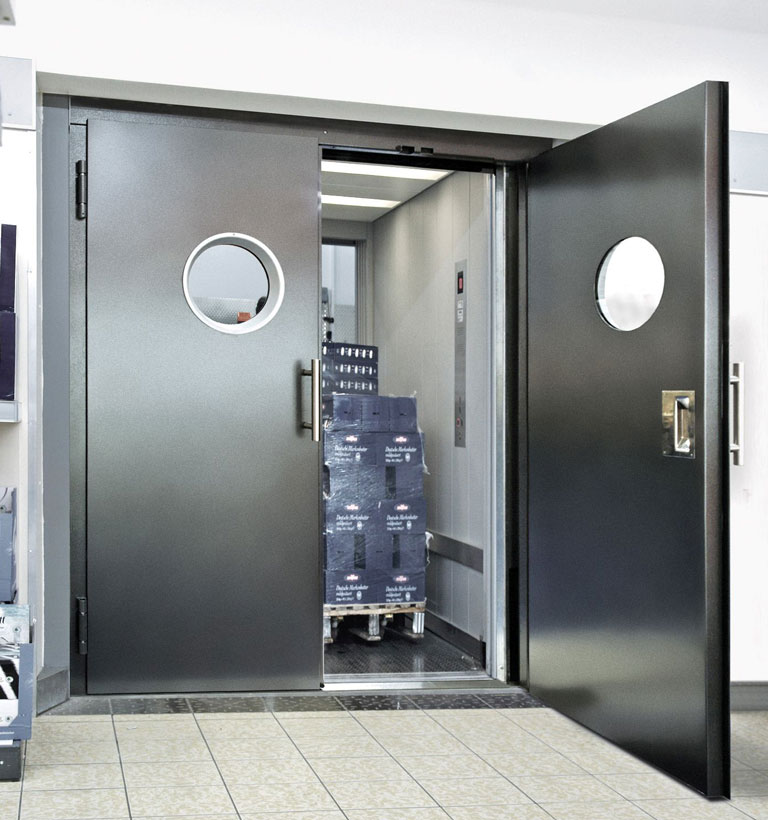

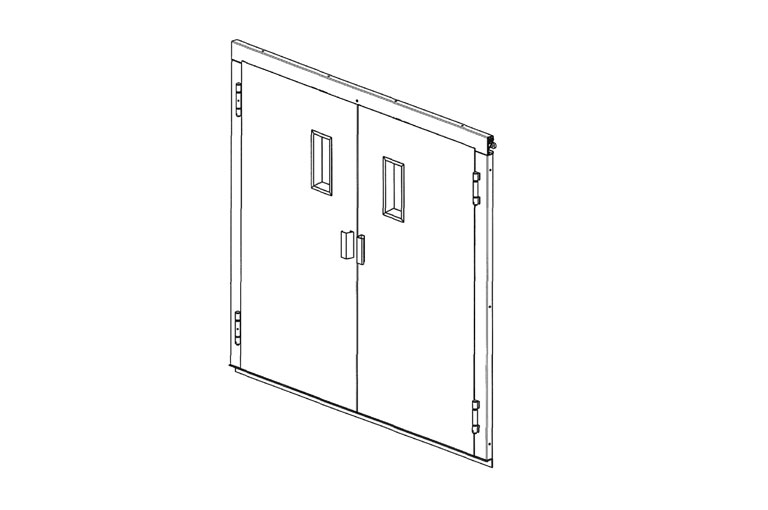

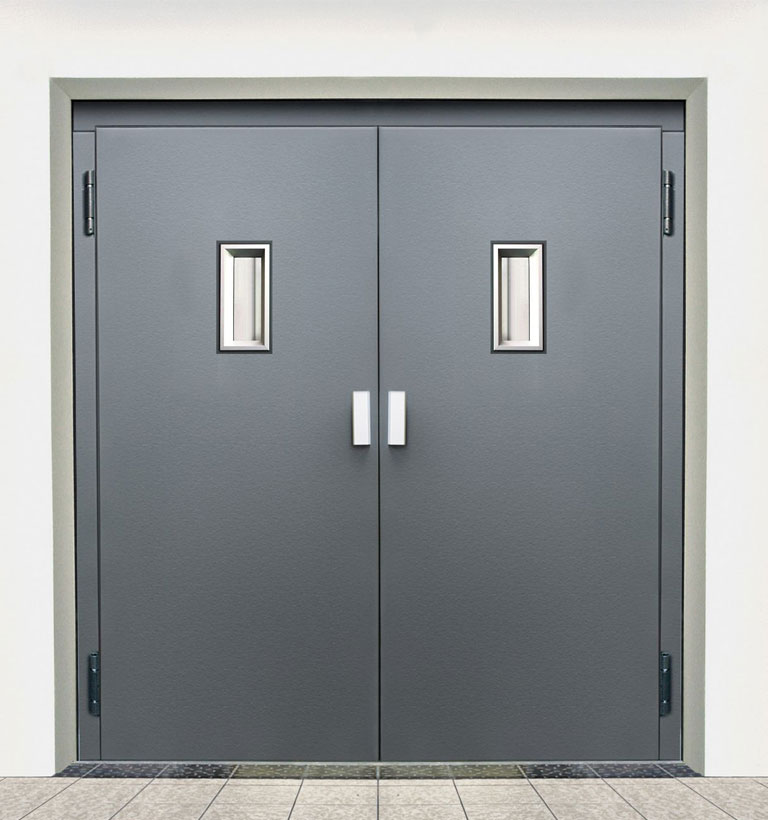

DT 39/2, 3, 4

With its sturdy construction (door panels made of 2mm sheet steel and door frames of 4mm sheet steel) and external hinges with integrated height adjustment, the DT 39/X is the ideal solution for heavy-duty industrial lifts.

The frame and door panel contours as well as the position of the pivot point have been selected to ensure a clear door width at a door opening angle of 90°. The doors can be opened up to 180°, whereas the lift can already be loaded with the entire internal frame clearance when doors are opened at 125° or more.

The modular design of these swing doors makes it easy to replace individual frame parts or the door panels in case of any damage. A symmetrical or asymmetrical door panel layout or the option to have a two, three or four door panel setup opens up a wide variety of design possibilities for individual applications. DT 39/X is available on request even in door sizes that are far beyond standard door sizes.

Submit product inquiry now

Our products


Dimensions


Intermediate sizes and other dimensions available on request.
Further information about range of dimensions.

Submit product inquiry now

Type Door width Door height
DT 39/1 600 - 1500 mm 1800 - 4000 mm
DT 39/2 1200 - 3000 mm 2000 - 4000 mm
DT 39/3 1400 - 3700 mm 2000 - 4000 mm
DT 39/4 1600 - 4000 mm 2000 - 4000mm

Quality features

Structural features

Variable frame dimensions, adaptable interface to car door, removable door panels

Window

100 x 300 with wired glass, window frame made of anodised EV 1 aluminium, removable

Sill

Angle profile 60 X 60 X 6 mm

Protection class

Lock flap in IP 40 (optional)
door contact switch in IP 20

External hinges

  • Adjustable height by approx. ± 3 mm, mounted completely with screws, removable as of approx. 50° (even in niche installations).
  • Third hinge installation possible, clear door width (CDW) attained with opening angle of 90° or more.
  • Clear distance between side frames = CDW + 70 mm,
  • Maximum door panel opening at 180°.
  • Smooth rotational movement of 61 mm thick door panel, (sheet metal 2 mm thick), thanks to slide bushings and washers.
  • 4 mm frame and sill with 50 mm frame depth,
  • 6 mm thick sill bracket.
  • All doors are equipped with type-tested locking bolts.

Frame

Folded sheet steel, 4 mm thick, primed

Locking (optional)

Set up for Kronenberg DLF 2 door lock, with single bearing block. 11 shortened, roller lever actuation parallel to frame, unlocking position towards door panel, position of roller lever in transom, side selection (right or left from the outside) necessary

Handles

Aluminium handle, anodised EV1
plastic handle recesses, black

Door panel

Folded sheet steel, 2 mm thick, primed

Locking mechanism

Door damper (Dictator)

Accessories

Wall mounting brackets according to DIN 18090
Installation manual

Note

The swing door is generally constructed based on DIN 18090 or in accordance with DIN 18090, when the design of the swing door complies with the standard. Design according to EN 81-58 possible. Other sizes and options subject to inquiry.
