MEILLER PREMIUS®

PREMIUS® K4i

Vertical car door for goods and vehicle lifts

Impressive in terms of safety and easy installation.

The new lifting gate from MEILLER is the perfect solution for retrofitting heavy freight lifts equipped with swing doors that are still operated without car doors.

PREMIUS® K4i, as 4-panel telescopic vertical door, provides safe separation between the lift car and the shaft wall.

PREMIUS® K4i is also the perfect compliment for a new lift installation with swing doors when there is not enough space available for sliding doors.

The installation in new or existing lifts is both efficient and easy.

PREMIUS® K4i needs very little space, the width of the car remains unchanged, as no door sill has to be installed.
MEILLER PREMIUS® K4i is combined either with a MEILLER swing door from the DT3X series or a standard retail swing door.

A locking cam is optionally available and is installed on the door, actuating the swing door’s locking mechanism. The door panels are made of 1.5 mm thick steel sheet with reinforcement ribs and are powder-coated in RAL 7004 signal grey. Other RAL colours are available as an option. A light curtain may also be used as a closing edge safety.



Vertical door advantages:

  • No risk of lateral crushing
  • Ideal for forklifts, since there are no troublesome door sills
  • Easy to install
  • PREMIUS® K4i complies with EN 81-20

Submit product inquiry now

PREMIUS® S4i

Vertical landing door for goods and vehicle lifts

Ideal for restricted space and easy to install.

The new powered vertical landing door from MEILLER is the perfect solution for retrofitting goods and vehicle lifts that only have very little space available on the sides of the car.

PREMIUS® S4i, as 4-panel telescoping upwards vertical landing door, is the perfect replacement for swing doors or 4-panel folding landing doors, be it hand-operated or motorised.

The PREMIUS® S4i is equipped with MEILLER”s new MiDrive door drive system.

In combination with MEILLER’s PREMIUS® K4i vertical car door, both doors are optically coupled, enabling them to communicate with one another.

This ensures that the car door always “knows” which landing door it is currently adjacent to. Thanks to MiDrive's new servo mode, it only takes a small force to slide open even a very large PREMIUS® S4i in conjunction with the adjacent PREMIUS® K4i in the event of an emergency release, as the motor supports this motion.

PREMIUS® S4i is the ideal alternative for a new lift installation where space is a premium, since it requires very little space on the sides.

Vertical door advantages:

  • No risk of lateral crushing
  • Ideal for forklifts, since the sill is extremely solid as double U beam
  • Easy to install
  • PREMIUS® S4i complies with EN 81-20

Submit product inquiry now

Our products

Dimensions


Intermediate sizes and other dimensions available on request.
Further information about range of dimensions.

Type Door width Door height
PREMIUS® K4i lifting gate 1000 - 3000 mm 2000 - 4000 mm
PREMIUS® S4i lifting gate 1000 - 3000 mm 2000 - 4000 mm

Gallery

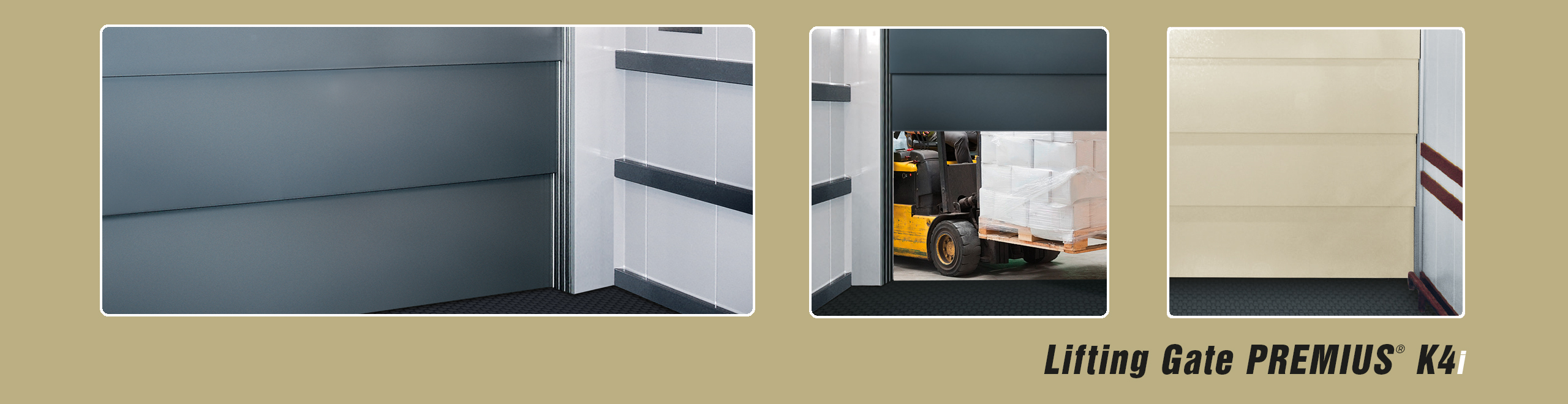

Premius® K4i
Premius® K4i
