MEILLER swing doors

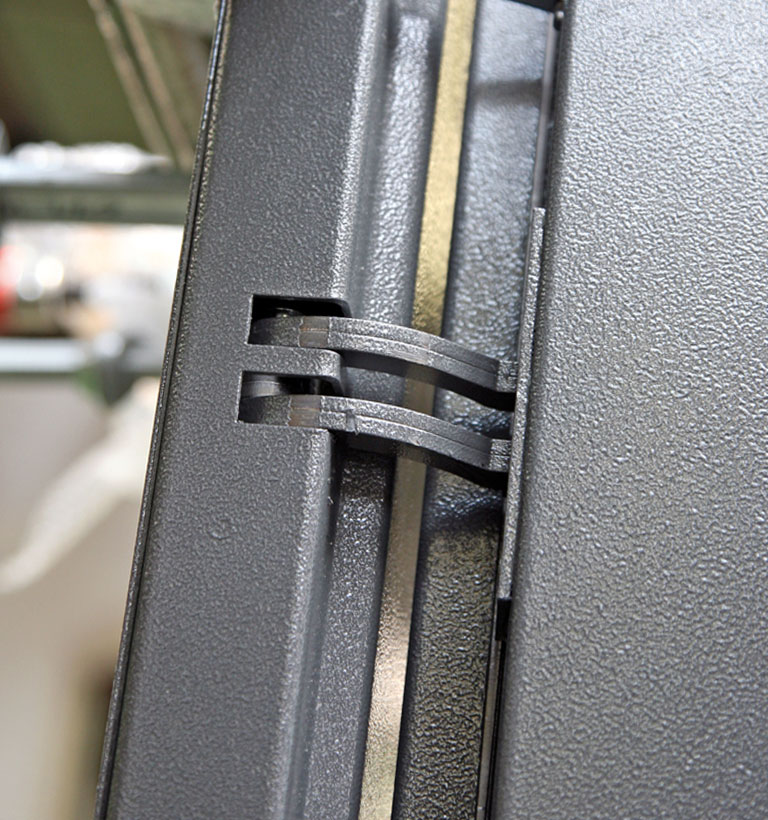

Swing doors for passenger and goods lifts with concealed hinges

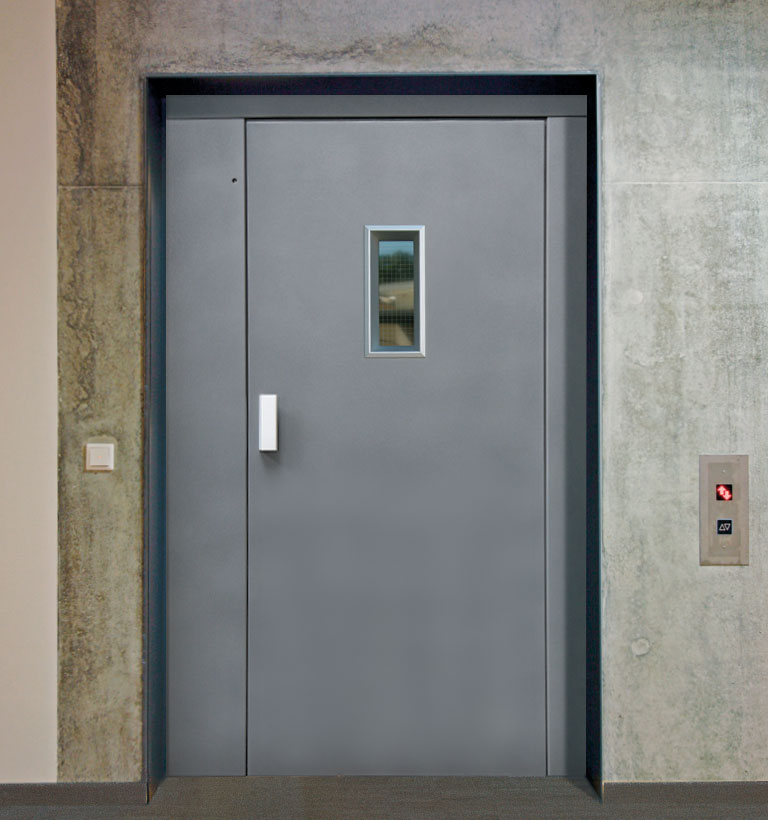

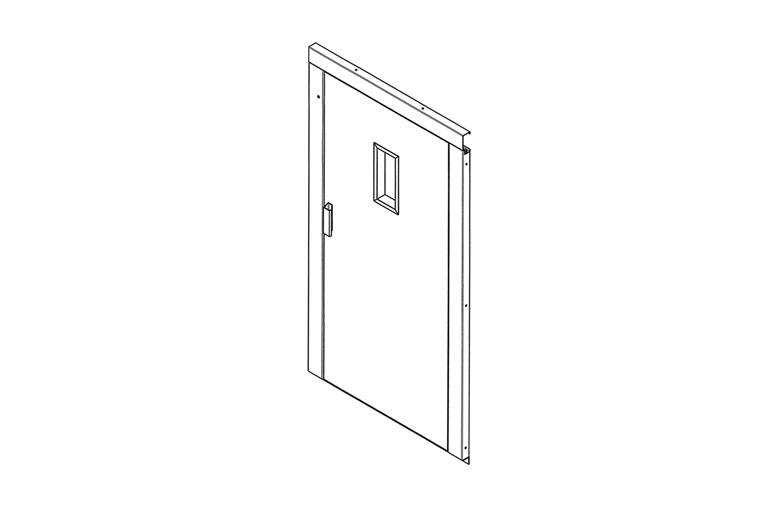

DT 37/1

With its variable clear passage width, frames, transom heights and frame widths, the single-panel swing door is ideal for installation in tight lift shafts or in existing door recesses without requiring any major modification measures on site.

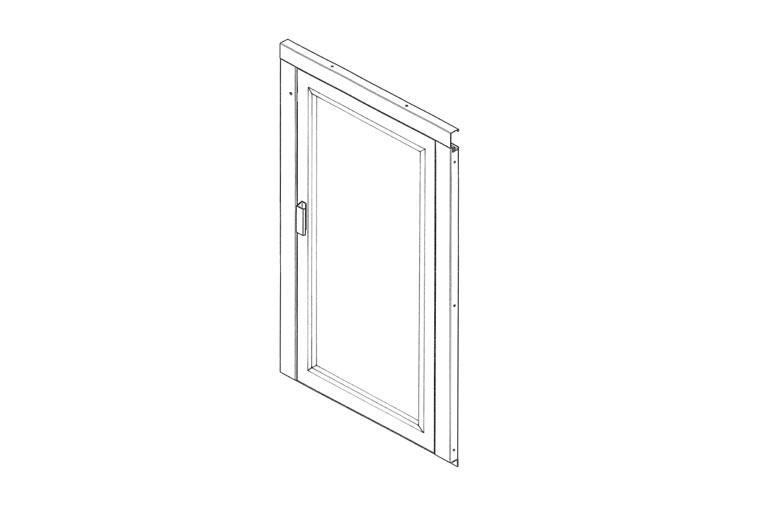

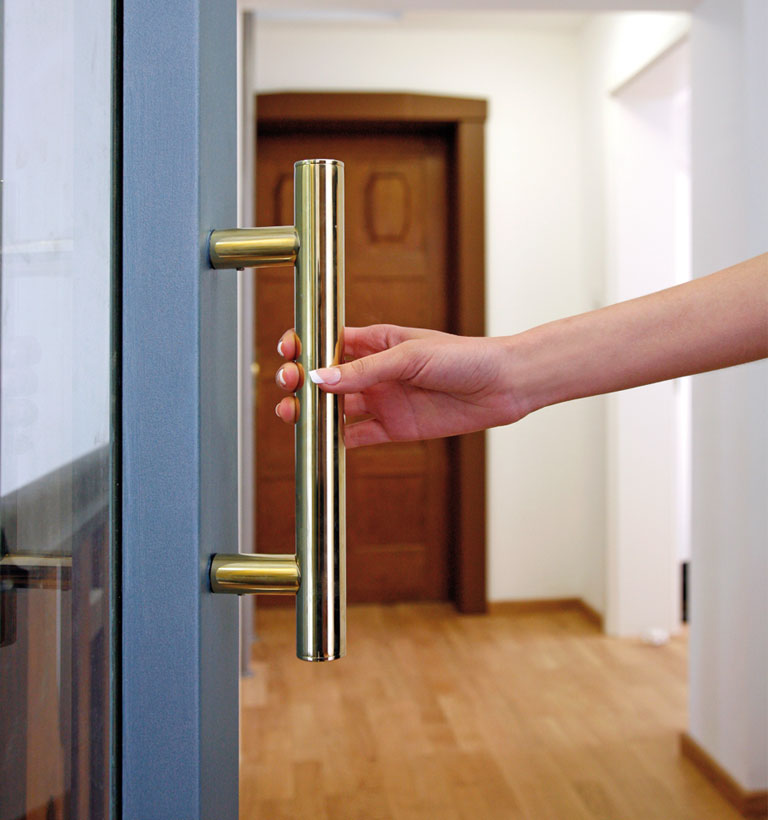

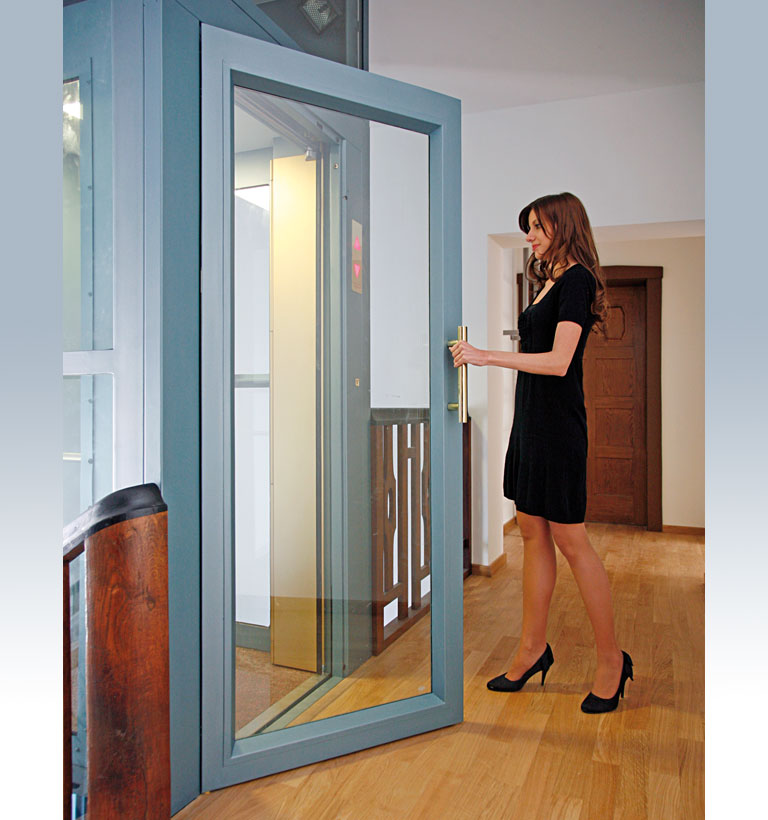

DT 37/1 Bellevue

The elegantly designed door in sturdy construction is built to satisfy the highest aesthetic demands in residential locations and is also available in variable sizes.

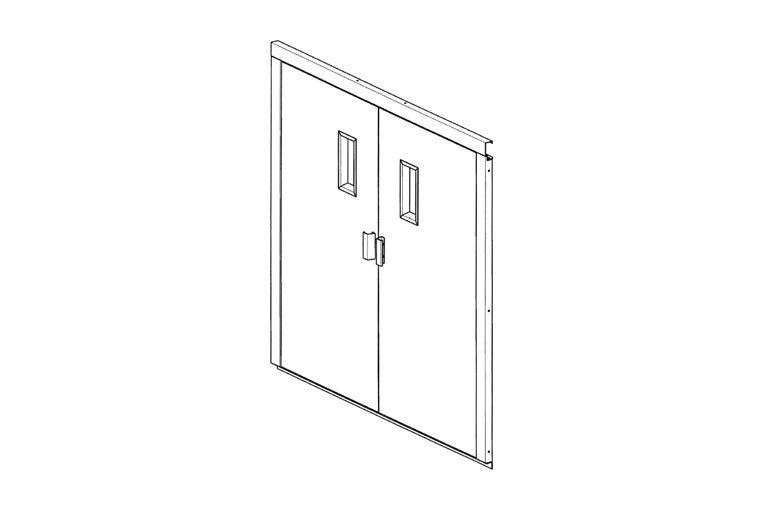

DT 37/2

The two-panel swing door is available in variable sizes in order to accommodate larger loading widths and heights.

The closing edge of the door can be provided with or without an overlap. As a standard feature, the last closing door panel is the right-hand door, but the left-hand door may also be selected as an option.

Both door panels can be either symmetrical or asymmetrical.

Submit product inquiry now

Our products

Dimensions


Intermediate sizes and other dimensions available on request.
Further information about range of dimensions.

Submit product inquiry now

Type Door width Door height
DT 37/1 500 - 1300 mm 2000 - 2300 mm
DT 37/1 Bellevue 500 - 1000 mm 2000 - 2100 mm
DT 37/2 1200 - 2500 mm 2000 - 2500 mm
DT 37/2 MO 800 - 1199 mm 2000 - 2500 mm

Quality features

Window

100 x 300 with wired glass, window frame made of anodised EV 1 aluminium, removable

Structural features

Variable frame dimensions, adaptable interface to car door
removable door panels

Sill

Folded sheet steel, 4 mm thick, primed

Protection class

Interlock in IP 40 (optional)
door contact in IP 20

Door panel

Folded sheet steel, 1.5 mm thick, primed

Frame

Folded sheet steel, 2 mm thick, primed

Locking (optional)

in the closing frame (only in single-panel doors), in the transom, without/with auxiliary contact, according to EN 81-21

Accessories

Wall fastening brackets
Installation manual
